Solar Agricultural Water Pump Power Solutions

ElectroWorld Lucknow is proud to announce that we are now enabled to provide Solar Water Pumps for Agricultural use. The Solar Powered Water Pump has a mini solar power house (Solar Photovoltaic Panels) at its heart and consists of a well calibrated solar array modules, tuned to the equivalent output power of water pump. The Solar Powered Water Pumping System is capable of running all types of Electrical Water Pumps with applications varying from irrigation to household water demands. Our Affordable and Cheap Solar Irrigation Pumps for Agricultural use are majorly run on high efficiency pumps such as submersible, surface self-priming mono block pumps or deep bore well water pumps can also be coupled with drip irrigation systems to enhance the return on investment.

A typical Solar Water Pumping system is known by the summarized total of solar array size that is required to run the attached water pump to provide water. A 1000 Wp solar water pump is capable of drawing and pumping an approximate volume of 40,000 liters of water per day from a source that is up to 10 meters deep. This is a sufficient amount of water to irrigate about 2 acres of land with regular crops. A 1000 Wp solar water pump in return helps save up to Rs.45,000 when compared to equivalent use of a diesel-operated water pump over a year.

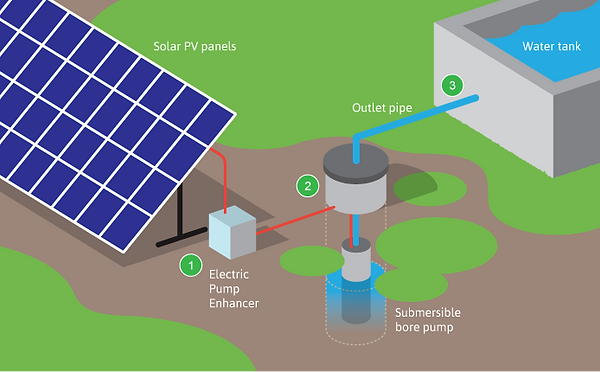

Solar Water Pump Functioning:

  1. Each solar power array has a number of pv solar modules connected in parallel or series. Every solar PV panel generates current by converting solar radiation to electrical energy.

  2. The electrical energy from the entire array is controlled, tuned and directed by the inbuilt controller in DC pumps or through the Variable Frequency Driver (VFD) and enables the connected pump (may be submersible or surface) to draw water and feed the delivery pipelines.

  3. The water thus drawn from ponds, rivers, bore wells or other sources by a solar water pump is pumped to supply water as required. It can be stored in tanks from where it is later channeled to fields or the supply from the pump may be coupled with drip irrigation systems to provide optimized water to fields directly.

A Solar Water Pumping System runs on electricity generated by photovoltaic or heat collected from sunlight. Solar water pump system is very economical and has a less environmental impact than pumps which are powered by an internal combustion engine. It is useful in places where grid electricity is not available. Solar Water Pumping System is cost effective because of the free availability of solar energy. It is a stand-alone system that operates on power generated by solar PV systems.

Features:

  • Provide electricity (AC/DC) for water pumping

  • Long operating life

  • Highly reliable and durable

  • One time investment, no running cost

  • No noise, no pollution

  • Works at more than 100 meter depth

  • Installed at remote areas

Applications:

  • Irrigation

  • Agriculture

  • Village electricity supply

  • Vacation cabins at camp sites

  • Water purification and treatment systems
